ITM Semiconductor, a company that brings trust to customers, happiness to employees, and shared growth for shareholders.

Sensor

What is Sensor?

We are providing the various application module using the products line up we have. They are state of the art MEMS products and the sensors which have ability to sense various light sources.

Proximity & Illumination sensor

Features
  • Including proximity / illumination sensor and IR-LED in a single optical package
  • Low Power Operation & Small Package (L 4.0 x W 2.0 x H 1.1mm)
  • High resolution illumination sensor which can detects similar to human eye
    - Operation of low deviation under various light sources (Fluorescent, LED, Incandescent, Halogen)
  • Long range & high precision proximity sensor
    - Normal operation under various light sources including strong sunlight
  • Low price solutions
근접 & 조도 센서

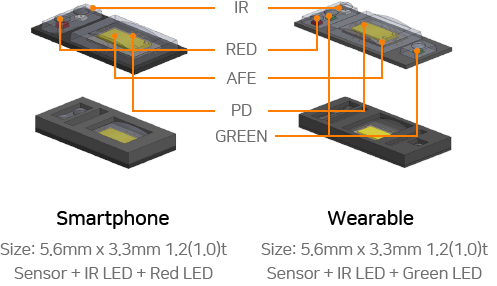

Heart rate sensor

Features
  • Optical heart rate / oxygen saturation measurement
  • Finger & Cuff (Wearable) Measurement Instruments
  • Oxygen Saturation / Heart Rate Simultaneous Measurement
심박 센서
심박 센서

Pressure sensor

Features
  • It can be mounted on main board or applied in the form of individual modules.
  • It saves the information for the output of linear pressure values to built-in EEPROM.
  • Automatic temperature compensation is included.
  • High precision digital output
  • It supports in two different form which are pressure sensor unit and waterproof module.
Application
  • Water level detection of home appliances
  • Medical / Industrial equipment
압력센서정보

Electrical Parameters, Specification 를 나뉘어 설명합니다.

Electrical Parameters Specification
Pressure Range 0 - 6kPa
Temperature Compensation Range 0 - 70˚C
Supply Voltage 2.7 - 5.5V (1), 1.8 - 3.6V (2)
Current Consumption Max 2.5mA
Overall Accuracy ±1.5% (Full Scale)
Output Type I2C / SPI, 14-Bit / 16-Bit
Package & Module Type 8 DIP / 4 Lead Type

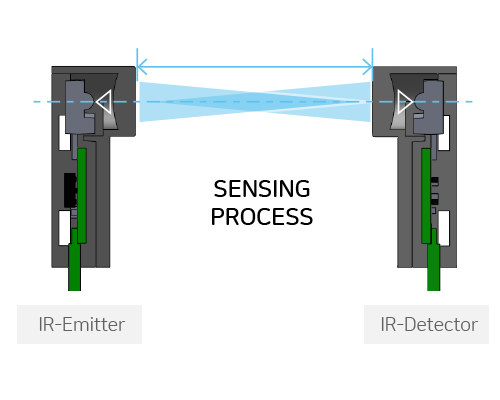

Infrared Sensors (1)

Features
  • Infrared Transmission Sensor Module
  • High sensitivity, phototransistor & photodiode combination for obstacle recognition
  • Utilize IR of 940 nm
  • Waterproof mold type
  • RoHS compliant
  • Home Appliances, Optical Switches, Infrared Applications
적외선 센서
적외선 센서
적외선 센서

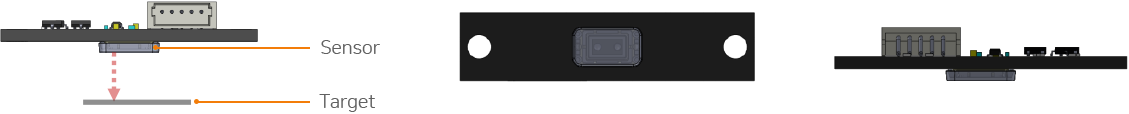

Infrared Sensors (2)

Features
  • Infrared Reflective Sensor Module
  • High sensitivity proximity sensor combination
  • 940nm Wavelength Infrared Proximity Sensor
  • Detect distance to reflector or change of reflector's state (color / contamination)
  • RoHS compliant
  • Home Appliances, Optical Switches, Infrared Applications
Application
  • Air Purifier
압력 센서정보

Electrical Parameters, Specification 를 나뉘어 설명합니다.

Electrical Parameters Specification
Supply Voltage 4 - 6.5V
Operating Temperature -35 ~ 85°C
Current Consumption Max 0.1mA (Normal CC)
Output Type I2C / 14-Bit
Package & Module Type 9mm x 39mm x 1.6T
압력 센서

Acceleration sensor

Features
  • SPI/I2C Interface
  • Voltage range: 2.16V to 3.6V
  • Acceleration range: ±6g / ±12g / ±24g
  • Resolution: 16bit, 0.18mg to 0.73mg LSB
Application
  • Balance Detection of Washing machine's Tanks
가속도 센서
가속도 센서

Dust sensor

Features
  • Infrared optical method
  • Dimensions / Weight: 58.5 (L) x 45.7 (W) x 19 (T) mm, 20g.
  • PWM/UART Interface
  • Airflow generated by the built-in heater
  • 1um dust can be detected
Application
  • Dust Detection in the Air
  • Air purifier, air conditioner
  • Indication of the density of dust (PM2.5, PM10)
  • External dust detector
  • Fire Alarm (Smoke Detection)
먼지 센서

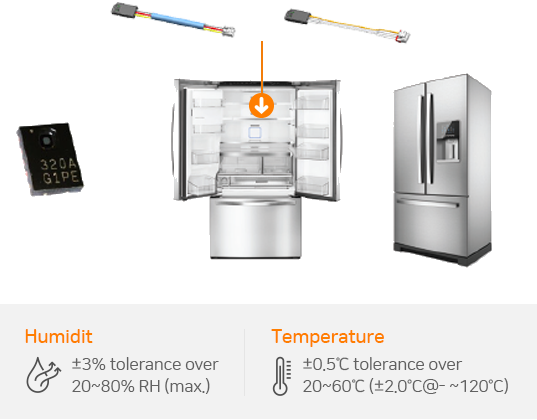

Temperature and humidity sensor

Features
  • I2C/PWM/PDM/Analog Interface
  • Voltage range : 4.5V to 5.25V
  • Excellent long term stability
  • Resolution: 12 / 14bit (relative humidity / temperature)
  • ±3% tolerance over 20~80%RH (max.)
  • ±0.5℃ tolerance over 20~60℃ (±2.0℃@-40~120℃)
Application
  • Home Appliances (Refrigerator / Air Conditioner / Air Purifier…)
  • IoT, Automotive, Mobile
온습도 센서
